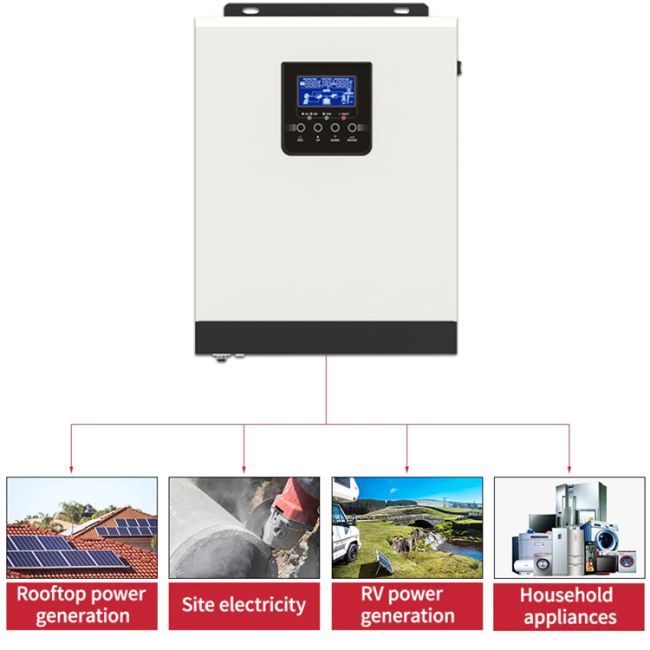

Hybridilaite 24V 2400W PWM 50A invertteri

Uusi, edullinen PWM 24V 2400W yhdistelmälaite (80VDC ). Oletko rakentamassa aurinkovoimalaa pienillä kustannuksilla? Tässä siihen sopiva säädin.

Tätä edullisempaa settiä off-grid asennukseen ei löydy. Laadukkailla komponenteilla.

Puhdas siniaaltoinvertteri + akkulaturi + PWM lataussäädin aurinkopaneeleille!

RatedPower 3000VA/2400W
Voltage 230VAC
Selectable Voltage Range 170-280VAC / 90-280VAC
FrequencyRange 50Hz/60Hz(Autosensing)

OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Surgepower 6000VA
Efficiency(Peak) 93%
TransferTime 10ms(for personal computers) / 20ms(for home appliances)
Waveform Pure Sine Wave

BATTERY
Battery Voltage 24VDC
Floating Charge Voltage 27VDC
Overcharge Protection 30VDC

SOLARCHARGER

Maximum PV Array Open Circuit Voltage 80VDC
MPPT Range @ Operating Voltage 36VDC
Maximum Solar Charging Current 50A
Maximum AC Charging Current 20A/30A
Maximum Charging Current (Utility Charging+Solar Charging) 80A
Standby Power Consumption 2W

PHYSICAL

Dimension.D*W*H(mm) 305*272*100
NetWeight(kgs) 5.2kg

OPERATING ENVIRONMENT

Humidity 5% - 95% RelativeHumidity (Non-condensing)
OperatingTemperature 0°C - 55°C
