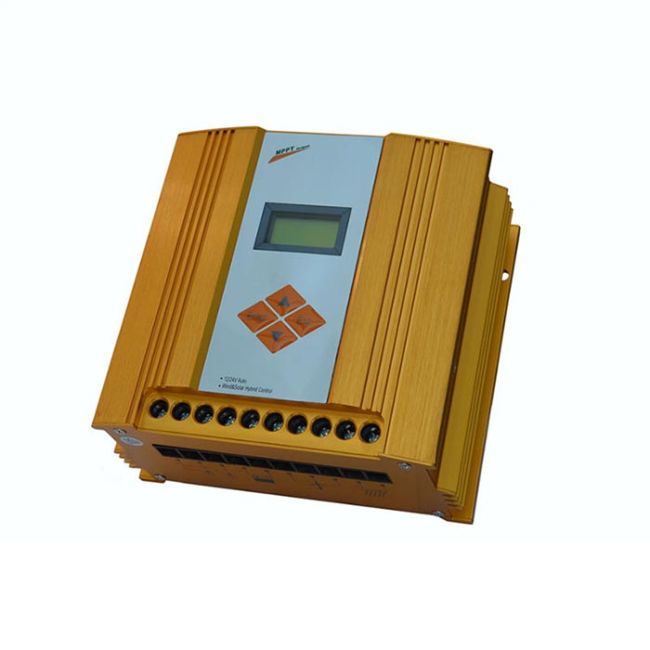

MPPT hybriidi lataussäädin 600W + 300W

Huippulaadukas MPPT hybridi lataussäädin aurinkovoimalle sekä tuulivoimalle.

Uusimman sukupolven MPPT tekniikan avulla saat jopa 30% enemmän sähköä verrattuna PWM tekniikkaan. MPPT tekniikka optimoi akkujen latauksen mikroprosessorin avulla.

Lisätiedot englanniksi

• Rated wind turbine power  (12V/24V) (100-300W) / (200-600W)
• Wind turbine brake voltage(12V/24V) 15VAC/25VAC
• Wind turbine brake current(12V/24V) 35A
• Indication LCD (8X2 char,green backlight)
• Static power consumption[mA]  <20
• Operating temperature  -30 centigrate ∼ +55 centigrate
• Store temperature       -35centigrate∼ +80centigrate
• Humidity       0%--98% (NC)
• Temperature compensation    -35mV/centigrate  (25centigrate ref.)
• Altitude [m]       ≤2000
• Protection class  IP55
• Data comuction(option)  RS232-USB/RS485/GPRS converter
• Dimension(W*L*H) [mm] 146*152*78
• Net-weight[kg]  1.2
• Wind generator control set-up definition :
• Rated Wind Turbine Power (12v/24v)  100W-300W / 200W-600W
• Wind Turbine brake voltage (12v/24v) 15Vac / 30Vac (adjustable)
• Wind Turbine brake current  23A
• Solar panel set-up definition :
• PV power Max. (12v/24v) 150W / 300W
• PV open circuit voltage Max. (12v/24v) 24.0V / 48.0V
• PV charge current Max.  12.5A
• Battery management definition :
• Over-discharge Voltage (12V/24V) 10.5V / 20.0V adjustable
• Over-discharge Recovery Voltage (12V/24V)  12.0V / 24.0V  adjustable
• Over-charge Voltage (12V/24V)  15.0V / 30.0V adjustable
• Over-charge Recovery Voltage(12V/24V) 13.5V / 27.0V adjustable
• Output Set-up function :
• Each Line Output Current rating  5A
• Each Line Output rated Power (12V/24V) 60W / 120W
• Dusk and dawn threshold voltage  ( VsTH)  default : 6.0V adjustable
