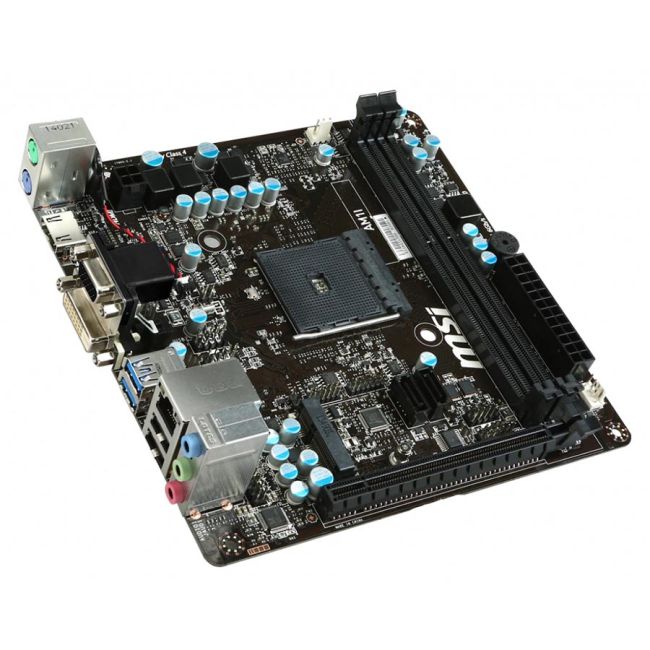

MSI MS-7865 AM1 emolevy

Edullinen AM1 prosessorikannalla varustettu retro-emolevy.

Englanninkielisiä teknisiä tietoja:

CPU AMD Socket AM1 Athlon™ /Sempron™ Processors
Main Memory
• 2 x DDR3 memory slots support up to 32GB
• Supports DDR3 1333/ 1600 MHz
• Single channel memory architecture
• Supports non-ECC, un-buffered memory
* For the support status of AMP/XMP memory modules, please take MSI’s Memory Support list as reference.
* The Max. 32GB memory capacity can be supported with DIMMs of 16GB (or above). MSI will update Memory support list once the DIMMs are available on the market.
Slots
• 1 x PCIe 2.0 x16 slot, supports x4 speed
• 1 x Mini-PCIe slot
Graphics
• 1 x VGA port, supporting a maximum resolution of 1920x1200
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200
• 1 x HDMI port, supporting a maximum resolution of 4096x2160
On-Board SATA
• 2 x SATA 6Gb/s ports
- Supports storage and data transfers at up to 6Gb/s
Audi
• Chipset integrated by Realtek® ALC887
- 7.1-Channel High Definition Audio
LAN
• Supports Gigabit LAN by Realtek® RTL8111G
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 3.0 ports
- 2 x USB 2.0 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 3-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM connector
- 1 x System panel connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
