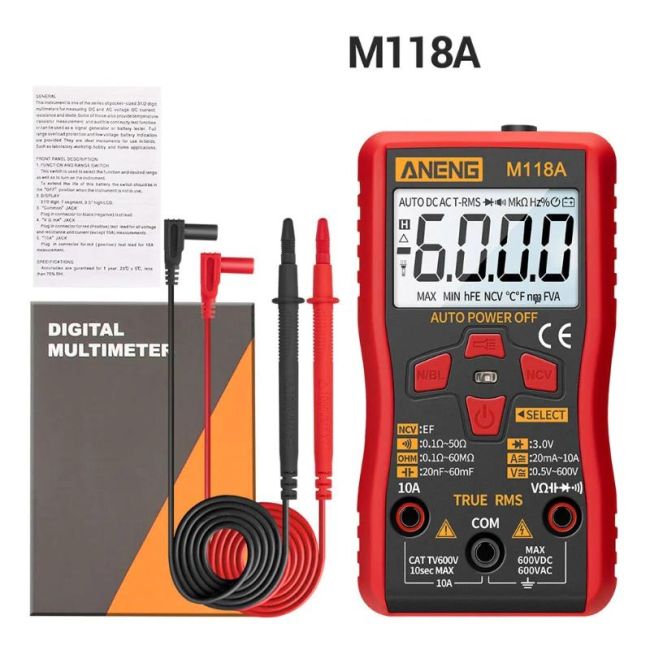

M118A TRMS yleismittari

Todella monipuoliset ominaisuudet uskomattoman edulliseen hintaan. M118A toimintoja mm.

• Jännitemittaukset 600 V AC/DC
• Virtamittaukset 10 A AC/DC
• Vastusmittaukset

Lisätietoja englanniksi:

Model Number: M118A
Display:6000 counts
DIY Supplies: Electrical
Operating Mode: Automatic
DC Voltage Range: 0.5V~600V
AC Voltage Range: 0.5V~600V
AC Current Range:20mA/10A
DC Current Range: 20mA/10A
Measuring Resistance Range: 0.1~50 Ohm
Display Type: Digital Display
Flash Light, Back light,Auto-power Off
NCV test,TRUE-RMS,Data Hold
Sample Rate: 3 times per second

Specifications:
Model: M118A
Display: 6000 counts
continuity test: YES
NCV: YES
Zero line/Fire line test: YES
All unit symbol: YES
Backlight manual: YES
true RMS: YES
automatic shutdown: YES
Flashlight lighting: YES
diode: YES
Sampling rate: 3 times per second
power supply: 2 * 1.5V AAA
DC/AC voltage: 6V/ 60V/ 600V ±(0.5%+3)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3) , 60MΩ ± (2.5%+3)
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF ±(3.5%+20)， 60mF ±(5%+3)
AC / DC current: 6A/10A ±(2%+30)
