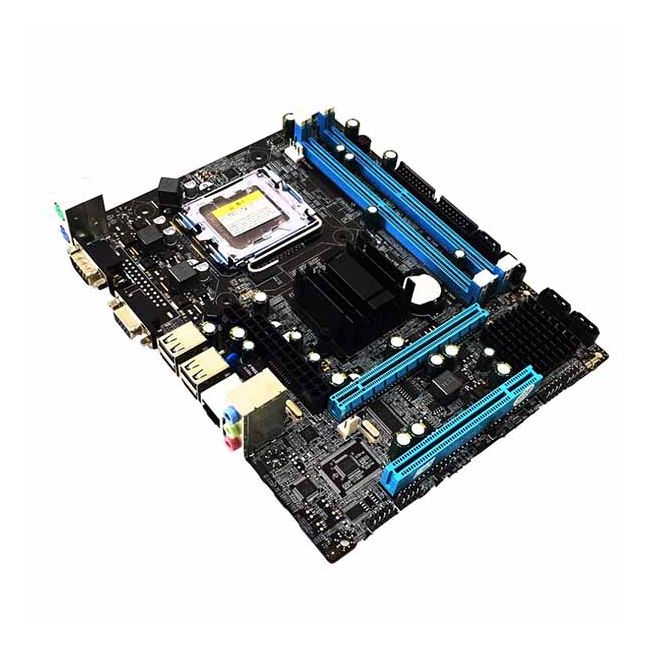

G31 LGA771 / 775 -emolevy

G31 -piirisarjalla ja LGA 771 / 775 -prosessorikannalla varustettu emolevy retroiluun.

Ominaisuuksia englanniksi:

Processor support: supports LGA775 encapsulation of 775 processors and most of the 771CPU
Front side bus: 533/800/1066 MHZ
Chipset: for Intel g31/g33/G35/Q35 and other chipsets(North Bridge), for Intel ICH chipset(South Bridge)
Memory support: DDR2 533/667/800 SDRAM (can support 4GB), 2 DDR2 DIMM slots
Network: support for Realtek RTL8105E and other 100/10MB/S
Audio: integrated Realtek ALC chip with flexible 5.1 channel audio output
IDE: supports 1 IDE support Ultra DMA66/100 through ICH7
STAT: supports 2 SATA ports through ICH7
Rear panel: parallel port support the SPP/EPP/ECP mode, PS/2 mouse port, PS/2 keyboard port, serial port (COM1), 1 VGA ports, 2~4 USB 2 port, network socket, 3 flexible audio sockets
Board pin / interface: 1~2 USB2.0 pin, 1 Network interface, 1 front panel audio needles
Slot: 1 PCI Express x16 slot, 1~2 PCI slot (support 3.3V / 5V PCI bus interface)
Fixed hole: 6 fixed screw holes
Size: 21.6cm x 16.8cm
