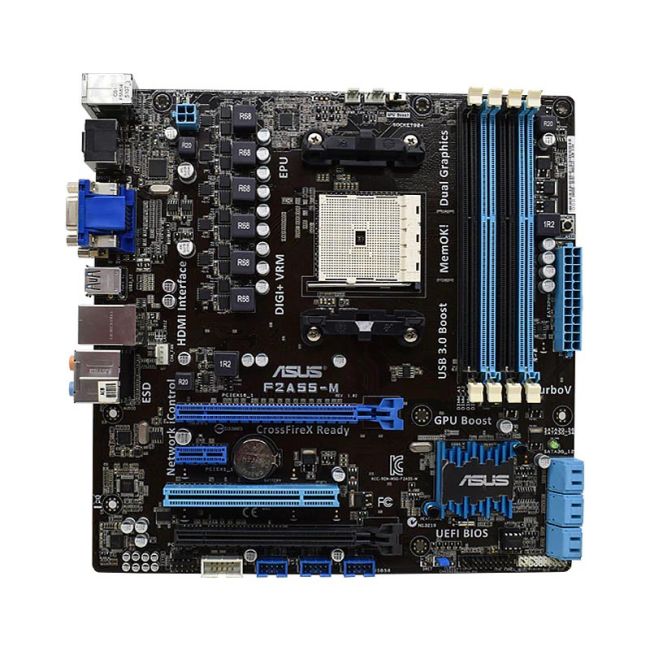

F2A55-M A55 FM2 microATX emolevy

Uusi emolevy A55 piirisarjalla ja FM2 AMD prosessorikannalla.

Englanninkielisiä teknisiä tietoja:

Main chipset AMD A55
Chipset description AMD A55 FCH (Hudson D2) chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111F Gigabit network card

Processor specifications
CPU type AMD A10 / A8 / A6 / A4 / Athlon
CPU Socket FM2
CPU descriptionSupport AMD 100W processor

Memory specifications
Memory type 4 × DDR3 DIMM
Maximum memory capacity: 64GB
Memory description Support dual channel DDR3 2400 (overclocked) / 2250 (overclocked) / 2200 (overclocked) / 2133 (overclocked) / 2000 (overclocked) / 1866/1600/1333 / 1066MHz

Storage expansion
PCI-E standard PCI-E 2.0 standard
PCI-E slot 2 × PCI-E X16 graphics slot, 1 × PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 6 × SATA II interface

I / O interface
USB interface 10 × USB2.0 interface (6 built-in +4 backplane); 4 × USB3.0 interface (2 built-in +2 backplane)
Video interface 1 × DVI interface, 1 × VGA interface, 1 × HDMI interface
Power interface One 4-pin, one 24-pin power connector
Other interfaces 1 × RJ45 network interface, 1 × optical fiber interface, audio interface, PS / 2 keyboard and mouse universal interface

Plate type
Motherboard form factor uATX form factor
Dimensions 24.4 × 24.4cm
