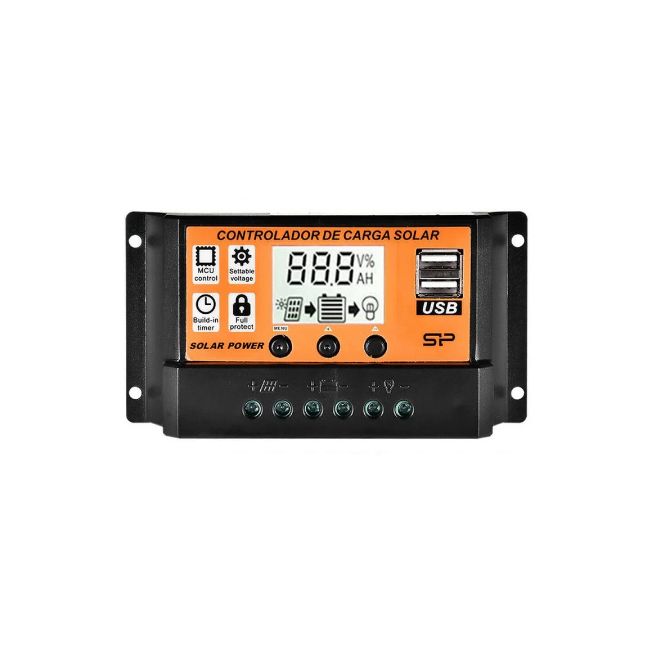

Eco SP MPPT lataussäädin 10-100A 12V/24V

Huippuedullinen mutta laadukas ECO SP lataussäädin MPPT tekniikalla. Kestää virtaa 10-100A, joten tähän säätimeen voit liittää 12V akustolla kunnon paneeleita. MPPT tekniikka säätää automaattisesti jännitteen ja virran suhteen akulle sopivaksi ja näin ollen on 15-30% tehokkaampi kuin vanhat PWM säätimet.

Kätevä LCD näyttö ja helpot säädöt. Erinomainen säädin aloittelevalle.

Lisätietoja:

Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel
12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7
12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0
11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
The minute is adjustable when the output is turned off, which is more convenient (there is no adjustment when the market is only available).

PV system power Description:

10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 12V photovoltaic system: power is respectively 100-1000W
10A/20A/30A / 40A / 50A/ 60A /70A/80A/90/100A battery 24V photovoltaic system: power is respectively 200-2000W
