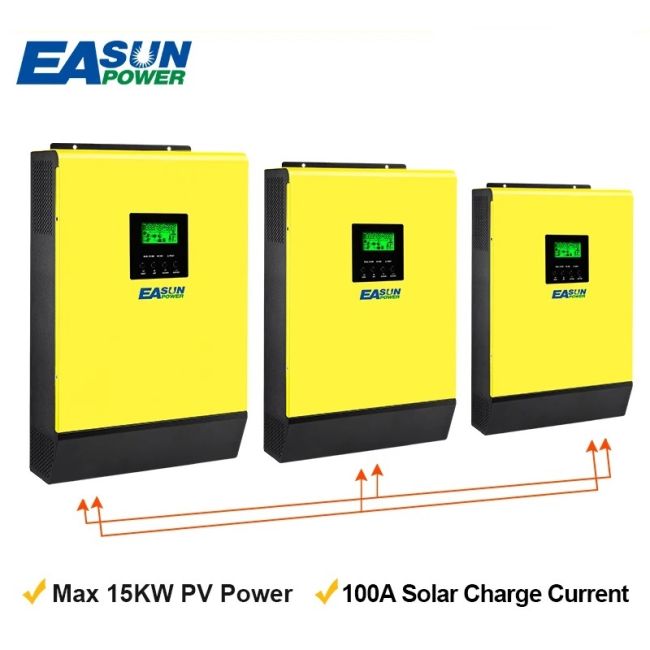

Easun IGrid SV II 15KW (5KWx3) järjestelmä 3-vaihe käyttöön. Sisältää uusimman sukupolven invertterit peräti 100A laturilla.

On/ Off grid järjestelmiin sopiva. Voi kytkeä rinnakkain max. 9 yksikköä! Tässä mukana kolme.

Mukana asennusohjeet (eng.)

Max. PV Array Power 15000W

Rated Output Power 15000W

Maximum PV Array Open Circuit Voltage 450 VDC

MPPT Range @ Operating Voltage 120 VDC ~ 430 VDC

MPP Tracker Number 1

GRID-TIE OPERATION

GRID OUTPUT (AC)

Nominal Output Voltage

220/230/240 VAC

Output Voltage Range 184 - 264.5 VAC / 195.5 - 253 VAC (Selectable)

Nominal Output Current 21.7A

Power Factor > 0.99

EFFICIENCY

Maximum Conversion Efficiency (DC/AC) 95%

OFF-GRID, HYBRID OPERATION

GRID INPUT

Acceptable Input Voltage Range 90 - 280 VAC / 170 - 280 VAC

Frequency Range 50 Hz/60 Hz (Auto sensing)

Maximum AC Input Current 40A

BATTERY MODE OUTPUT (AC)

Nominal Output Voltage 220/230/240 VAC

Output Waveform Pure sine wave

Efficiency (DC to AC) 93%

BATTERY & CHARGER

Nominal DC Voltage 48 VDC

Maximum Solar Charge Current 100A

Maximum AC Charge Current 100A

Maximum Charge Current 100A

MEASURES

Dimension, D x W x H (mm) 120 x 295 x 468

Net Weight per unit (kgs) 13kg *3

INTERFACE

Parallel Function Yes, 9 units (Parallel kits are not included)

Communication Ports

USB, RS-232 and dry contact

ENVIRONMENT

Humidity 0 ~ 90% RH (Non-condensing)

Operating Temperature 0 to 50°C

Easun iGrid 15KW järjestelmä 3-vaihe 100A On+Off Grid
