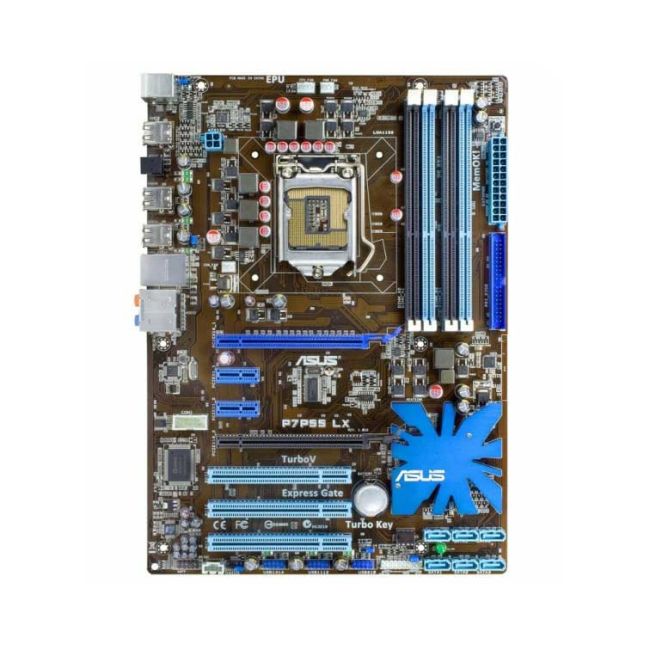

Asus P7P55 LX P55 LGA1156 ATX -emolevy

P55 -piirisarjalla ja LGA 1156-prosessorikannalla varustettu emolevy retroiluun.

CPU Socket Type LGA 1156
CPU Type Core i7 (LGA1156)/i5 (LGA1156)
Intel Turbo Boost Technology
Chipset Intel P55
Onboard Video Chipset None
Number of Memory Slots 4×240pin
Memory Standard DDR3 2200(O.C.)/1600/1333/1066
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 , 1 x PCI Express 2.0 x16 (single at x16), 1 x PCI Express 2.0 x16 (at x4 mode, 2.5GT/s)
PCI Express x1 , 2 x PCI Express 2.0 x1 slots (2.5GT/s)
PCI Slots 3 x PCI Slots
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID  0/1/5/10
Audio Chipset VIA VT1708S
LAN Chipset Realtek 8112L
Max LAN Speed 10/100/1000Mbps
