CSC Akku polkupyörän muutossarjaan 36-52V

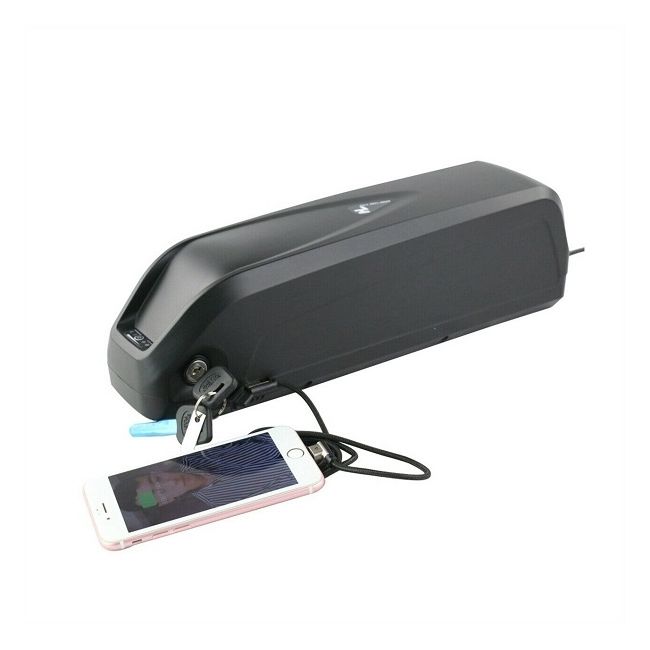

Jos olet sähköistämässä pyörääsi, tarvitset sitä varten akun. CSC -valmistajan akku kiinnitetään pyörän runkoon kuvan esittämällä tavalla ja voit valita haluamasi version jännitteineen.

• Runkoon asennettava akkumoduuli

Teknisiä tietoja akkuversioista:

36V 10Ah
Nominal Voltage: 36V
Nominal Capacity: 10Ah
Composed Type: 10Series 4Paralles 10S4P
Cells: Powerful 18650 3.7V 2000mAh 10A 5C Cells
BMS: 20 Amp continuous 50±10Amp maximum
Fit Motor Power : 36V 250W 350W 500W
Charge Current: 2-5A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 30V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 3.7kg

36V 15Ah
Nominal Voltage: 36V
Nominal Capacity: 15Ah
Composed Type: 10Series 4Paralles 10S6P
Cells: Powerful 18650 3.7V 2500mAh 10A 5C Cells
BMS: 20 Amp continuous 50±10Amp maximum
Fit Motor Power : 36V 250W 350W 500W
Charge Current: 2-5A
Charge Cut-off Voltage: 42V
Discharge Cut-off Voltage: 30V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 3.7kg

48V 12.5Ah
Nominal Voltage: 48V
Nominal Capacity: 12.5Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: Powerful 18650 3.7V 2500mAh 10A 5C Cells
BMS: 30Amp continuous 100±10Amp maximum
Fit Motor Power : 48V, 500W,750W, 1000W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 3.7kg

48V 14.5Ah Samsung
Nominal Voltage: 48V
Nominal Capacity: 14Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Samsung F1L 18650 3.7V 3500mah Power Cells
BMS: 30 Amp continuous 70±10Amp maximum
Fit Motor Power : 48V 1000W, 1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 54.6V
Discharge Cut-off Voltage: 39V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 3.7kg

48V 16Ah LG
Nominal Voltage: 48V
Nominal Capacity: 16Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: LG 18650 3200mah Power Cells
BMS: 30 Amp continuous 70±10Amp maximum
Fit Motor Power : 48V 1000W, 1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 52V
Discharge Cut-off Voltage: 42V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.5kg

52V 14.5A SANYO
Nominal Voltage: 52V
Nominal Capacity: 14Ah
Composed Type: 13Series 5Paralles 13S5P
Cells: SANYO 18650 3500mah Power Cells
BMS: 30 Amp continuous 70±10Amp maximum
Fit Motor Power : 52V 1000W, 1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 60V
Discharge Cut-off Voltage: 48V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 4.5kg

52V 17Ah
Nominal Voltage: 52V
Nominal Capacity: 17Ah
Composed Type: 13Series 4Paralles 13S4P
Cells: Sanyo 18650 3500mah Power Cells
BMS: 30 Amp continuous 70±10Amp maximum
Fit Motor Power : 52V 1000W, 1500W
Charge Current: 2-5A
Charge Cut-off Voltage: 60V
Discharge Cut-off Voltage: 48V
Discharge Temperature: -20 to 65°C
Charge Temperature: 0 to 45°C
Dimensions: 90*110*360mm
Battery Weight: 5.2kg
