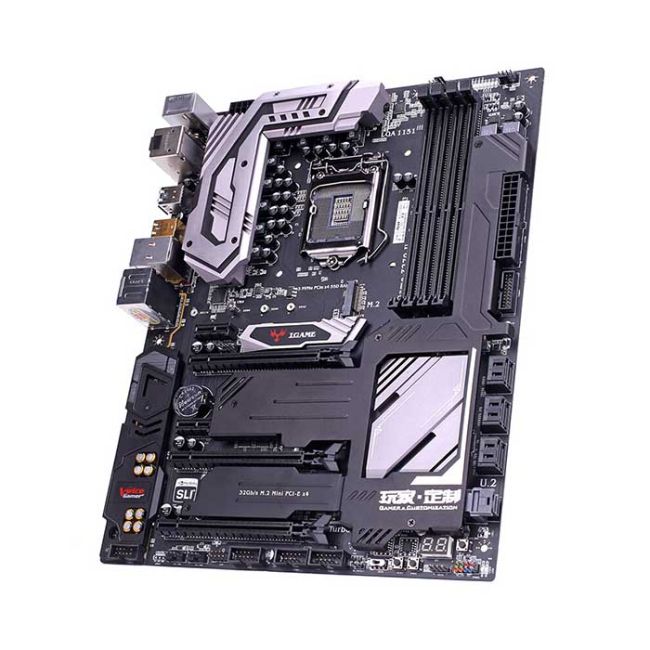

iGame Z270 LGA1151 ATX -emolevy

Intelin Z270 -piirisarjalla varustettu ATX emolevy. Tukee 7. / 6. sukupolven Intel Core i3/i5/i7 prosessoreja, ja Intel Pentium ja Celeron prosessoreja.

Chipset: Intel Z270
Processor: support for Intel LGA 1151 processors (TDP: 95W)
Max memory:64GB
Graphics:3 * PCI Express 3.0x16 slot
Back Panel I/O Ports
Internal I/O Connectors
1 * PS2 mouse/keyboard port
1 * 9-pin front panel audio connector
2 * Esport USB2.0 port(yellow color)
1 * System panel (HD LED, Power LED, Power switch, Reset button)
1 * Postposition CPU overclocking button
2 * USB 2.0 pin
1 * DisplayPort
1 * USB 3.0 pin
1 * HDMI port
1 * COM pin
1 * SPDIF OUT port
1 * CPU FAN
5 * USB 3.0 port
3 * Auxiliary fan
1 * USB 3.1 Type-C port
2 * M.2 slot
1 * 1000M LAN port
1 * Debug monitor display
6 * Audio port(8 audio channel supported)
1 * Dual BIOS switch button
1 * Power on/power off button
1 * Reset button
1 * CPU overclocking button
SATA ports: 6 * SATA3.0 6Gb/s ports(support RAID0,1,5,10), 1 * U.2 32Gb/s port
Intel OPTANE: supported
BIOS: 128M UEFI, dual BIOS design supports mouse operation and graphical BIOS
LAN: onboard RTL8118AS 1000M, provides 10/100/1000Mb Ethernet
Audio: onboard ALC1150 8-channel audio chipset
Power: 9 phase I.P.P digital power supply
Hardware monitor 1: CPU Temperature Monitoring, System Temperature Monitoring
Hardware monitor 2:  CPU Fan Speed Controlled, SYSTEM Fan Speed Monitoring,
Hardware monitor 3:  Voltage Monitoring
Other Features 1: with Debug module, dual BIOS, support SLI and AMD CrossfireX technology
Other Features 2: support powered off charge and fast charge
