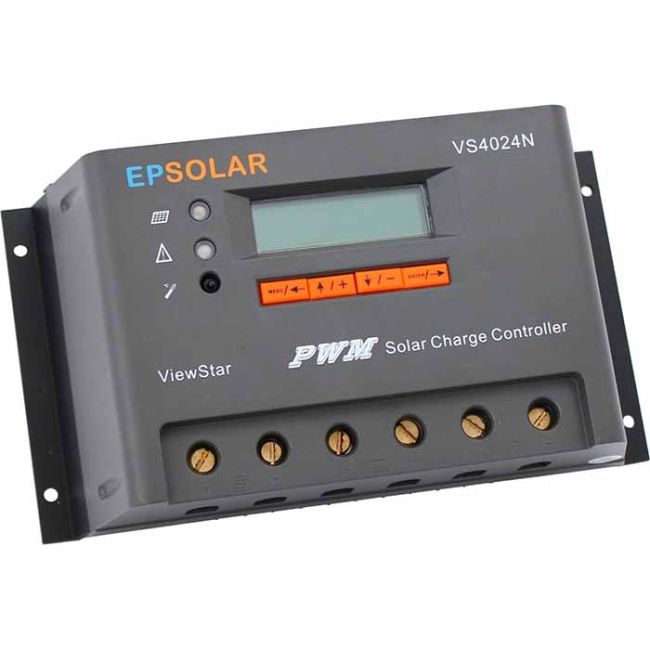

EPsolar 12/24V 40A lataussäädin LCD-näytöllä

EPsolar 12/24V 40A lataussäädin LCD-näytöllä

EPsolar 12/24V 40A lataussäädin LCD-näytöllä

135,95 €
Saatavuus: Varastossa!
SKU
00011503484304458

Todella laadukas 40A EPsolarin lataussäädin LCD näytöllä.

Ominaisuuksia englanniksi:

Excellent EMC design
32 bit MCU with high speed
High efficient Series PWM charging
Four battery type options: Sealed, Gel, Flooded, and USER
Intelligent lighting and timer control for solar lighting system
12 bit A/D high-precision sampling to ensure accuracy
Use MOSFET as electronic switch
Full control parameters setting and modification, diversified load control mode
Humanized design of browser interface, undertake every operating conveniently
Temperature compensation
Adopt graphics dot-matrix LCD screen and HMI  (human-machine interface) with 4 buttons,integrated menu displaying and operation
Energy statistics function
RS485 ports with MODBUS communication protocol
Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
Field upgradable firmware
Max. battery voltage 32V
Self-consumption ≤18mA
Communication TTL232 / 8pin RJ45
Equalize Charging Voltage Sealed:14.6V;x2/24V Flooded:14.8V;x2/24V
Boost Charging Voltage Gel:14.2V;x2/24V Sealed:14.4V;x2/24V Flooded:14.6V;x2/24V
Float Charging Voltage 13.8V;x2/24V
Low Voltage Reconnect Voltage 12.6V;x2/24V
Low Voltage Disconnect Voltage 11.1V;x2/24V
Temp. compensation -30mV/℃/12V(25℃)
Relative humidity 10%~90% Non-condensation
Working temperature -20℃ to +55℃
Enclosure IP20
